OPTIMA 700 PRODUCT RANGE
MODEL OVERVIEW
Optima 700 Ranges
Electric ranges with hot plates
| Number of hot plates: |
2 / 4 / 6 (4 and 6 also with eletric oven 1½ GN) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
1200 x 700 mm (max.) |
| Features: |
- housing made completely from chromium-nickel steel
- hot plates with protectors – heat supply automatically
- cut to 50% when not in use
- 7-position switch for precise temperature control
- Efficient heat insulation |
| |
 |
Electric ranges with large hob
| Number of hot plates: |
2 / 4 (4 also with eletric oven 1½ GN) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
800 x 700 mm (max.) |
| Cooking zone: |
320 x 555 mm, 18 mm thick (min.) |
| |
715 x 555 mm, 18 mm thick (max.) |
| Features: |
- seamless hob made from heat resistant or chrome plated steel
- separate thermostat-controlled heating zones
- suitable for use with pot and pans of most shapes
and sizes |
| |
|
VITRO electric range with ceramic Ceran® hob
| Heating zones: |
2 / 4 (4 also with electric oven 1½ GN) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
800 x 700 mm (max.) |
| Ceran® zone: |
305 x 540 mm (min.) |
| |
700 x 540 mm (max.) |
| Features: |
- seamless, easy to clean hob
- separately controllable heating zones, each 2,3 kW
- energy saving pan size recognition system |
| |
|
INDUCTION electric induction range with ceramic Ceran hob
| Heating zones: |
2 / 4 (4 also with electric oven) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
800 x 700 mm (max.) |
| Ceran® cooking zone: |
305 x 540 mm (min.) |
| |
700 x 540 mm (max.) |
| Features: |
- seamless, easy to clean hob
- separately controllable heating zones, each 3,5 kW
- electronic size recognition for pans with a base of 12 cm and over
- rapid heat transfer and high efficiency |
| |
|
Electric SURFACE INDUCTION range with ceramic Ceran® hob
| Heating zones: |
1 / 2 (2 also with electric oven) |
| Corpus height: |
700 mm |
| Dimensions: |
500 x 700 mm (min.) |
| |
800 x 700 mm (max.) |
| Ceran® cooking zone: |
400 x 400 mm (min.) |
| |
690 x 340 mm (max.) |
| Features: |
- seamless, easy to clean hob
- island surface induction (10 kW)
- electronic size recognition for pans with a base of 12 cm and over
- rapid heat transfer and high efficiency |
| |
|
Gas ranges
| Burners: |
2 / 4 / 6 (4 burners and above with electric or gas oven) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
1200 x 700 mm (max.) |
| Features: |
- housing made completely from chromium-nickel steel
- gas shut-off valve in the front panel as standard
- Reinigungsfreundliche Muldentiefe von 70 mm
- no irritating burning on of boiled over food |
| |
 |
Optima 700 Deep Fat Fryers

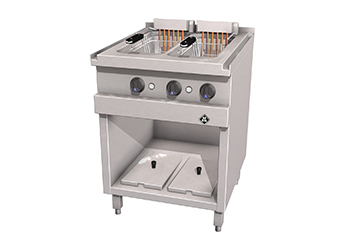

Electric deep fat fryers
| Models: |
London I, London II, Paris (all available with EcoControl electronic control) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
600 x 700 mm (max.) |
| Capacity: |
12,5 liters (min.) |
| |
30 liters (max.) |
| Features: |
- thermostatic or electronic temperature regulation
- safe oil drainage from below through draining ball valve
- reliable over-heating protection
- chromium-nickel tubular heating elements
- accessories: lid, oil clarifying tray, frying baskets |
| |
|
Optima 700 Boiling Kettles

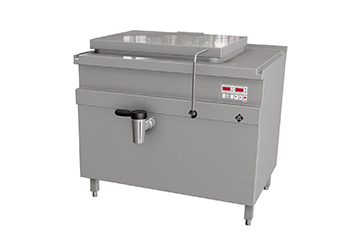

Electric quick boiling kettle
| Model: |
60 L VAPRO (also available with EcoControl electronic control) |
| Corpus height: |
700 mm |
| Dimensions: |
800 x 700 mm |
| Inner kettle: |
Ø 500 mm, 378 mm deep |
| Features: |
- integrated VAPRO steam generator system
- automatic water level monitoring
- short heating up times
- 3 cooking levels |
| |
|
Steam quick boiling kettle
| Capacity: |
60 L (also available with EcoControl electronic control) |
| Corpus height: |
700 mm |
| Dimensions: |
800 x 700 mm |
| Inner kettle: |
Ø 500 mm, 378 mm deep |
| Features: |
- inner kettle is formed from a single piece
- manual or EcoControl electronic control
- double-skinned hinged lid as standard |
| |
|
Gas quick boiling kettle (round)
| Capacity: |
60 L |
| Corpus height: |
700 mm |
| Dimensions: |
800 x 700 mm |
| Inner kettle: |
Ø 500 mm, 378 mm deep |
| Features: |
- inner kettle made completely from chromium-nickel steel
- innovative gas forced air burner technology
- quick boiling and short heating up times
- appliances are independent of the primary pressure of
- the gas supply
- 8 cooking levels as standard
- low energy consumption
- optimum mixture of combustion air with gas |
| |
|
Optima 700 Tilting Bratt Pans

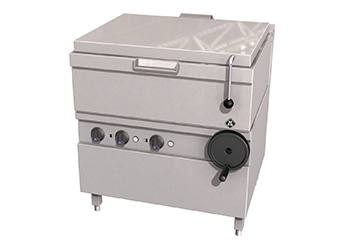

Electric tilting bratt pan with substructure
| Model options: |
2/1 GN, 3/1 GN (manuel or motorized tilting, also available with EcoControl electronic control) |
| Corpus height: |
700 mm |
| Dimensions: |
800 x 700 mm (min.) |
| |
1100 x 700 mm (max.) |
| Nominal capacity: |
59 liters (min.) |
| |
85 liters (max.) |
| Nominal capacity: |
44 liters (min.) |
| |
63 liters (max.) |
| Features: |
- heating system with SUPRA contact heating system
- even heat distribution
- thermostatic or electronic temperature control for two
- separated heating zones
- optional double-skinned hinged lid |
| |
|
Gas tilting bratt pan with substructure
| Model: |
2/1 GN (manual or motorized tilting) |
| Corpus height: |
700 mm |
| Dimensions: |
800 x 700 mm |
| Pan inner dimensions: |
720 x 535 mm, 190 mm deep |
| Nominal capacity: |
59 liters |
| Capacity: |
44 liters |
| Features: |
- even heat distribution over the whole pan bottom
- pan pivot point at the front
- even, no-splash pouring |
| |
|
Optima 700 Griddle Plates

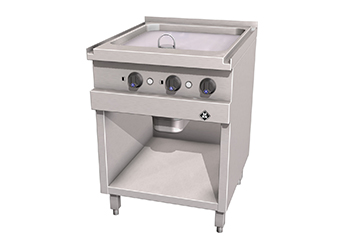

Electric griddle plates and pans
| Model options: |
¾ Supra (plate only), 1 Supra, 2 Supra
(griddle plate smooth, half-ripped or fully ripped) |
| Corpus height: |
700 mm |
| Dimensions: |
400 x 700 mm (min.) |
| |
800 x 700 mm (max.) |
| Frying surface: |
305 x 540 mm (min.) |
| |
700 x 540 mm (max.) |
| Features: |
- thermostatic temperature control for two separated heating zones
- heating system with SUPRA contact heating system
- even heat distribution |
| |
|
Gas griddle plates
| Model: |
1 (griddle plate smooth or half-ripped) |
| Corpus height: |
700 mm |
| Dimensions: |
600 x 700 mm |
| Frying surface: |
440 x 560 mm |
| Dripping tray: |
ca. 4 liters |
| Features: |
- thermostatic temperature control
- frying plate made from special heat resistant steel
- lowered plate, seamlessly welded into the top plate
- easy to clean corners |
| |
|
Optima 700 Braising and Roasting
Electric bratt pan MAGNUM
| Model options: |
2/1 GN |
| Corpus height: |
700 mm |
| Dimensions: |
1000 x 700 mm (min.) |
| |
1300 x 700 mm (max.) |
| Pan inner dimensions: |
700 x 540 x 250 mm (min.) |
| |
1020 x 540 x 300 mm (max.) |
| Nominal capacity: |
92 liters (min.) |
| |
165 liters (max.) |
| Capacity: |
77 liters (min.) |
| |
143 liters (max.) |
| Features: |
- multifunctional cooking unit for steaming, boiling, simmering,
- braising and roasting
- bratt pan made completely from chromium-nickel steel
- heating system with SUPRA contact heating elements
- even heat distribution
- EcoControl electronic control as standard
- double-skinned hinged lid as standard |
| |
|
