OPTIMA 850 PRODUCT RANGE
MODEL OVERVIEW
Optima 850 Ranges
Electric ranges with hot plates
| Number of hot plates: | 2 / 4 / 6 (4 and 6 also with electric oven) |
| Corpus height: | 700 mm |
| Dimensions: | 400 x 850 mm (min.) |
| 1200 x 850 mm (max.) | |
| Features: | |
| - housing made completely from chromium-nickel steel - hot plates with protectors – heat supply automatically - cut to 50% when not in use - 7-position switch for precise temperature control |
|
 |
|
Electric ranges with large hob
| Number of hot plates: | 2 / 4 (4 also with electric oven) |
| Corpus height: | 700 mm |
| Dimensions: | 400 x 850 mm (min.) |
| 800 x 850 mm (max.) | |
| Features: | |
| - seamless hob made from heat resisting or chrome plated steel - separate thermostat-controlled heating zones - suitable for use with pots and pans of most shapes and sizes |
|
|
|
VITRO electric range with ceramic Ceran® hob
| Heating zones: | 2 / 4 (4 also with electric oven) |
| Corpus height: | 700 mm |
| Dimensions: | 500 x 850 mm (min.) |
| 800 x 850 mm (max.) | |
| Features: | |
| - seamless, easy to clean hob - separately controllable heating zones, each 4,0 kW - energy saving pan size recognition system |
|
|
|

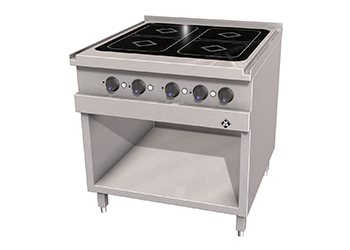

INDUCTION electric induction range with ceramic Ceran® hob
| Heating zones: | 2 / 4 (4 also with electric oven) |
| Corpus height: | 700 mm |
| Dimensions: | 400 x 850 mm (min.) |
| 800 x 850 mm (max.) | |
| Features: | |
| - seamless, easy to clean hob - separately controllable heating zones, each 5,0 kW - electronic size recognition for pans with a base of 12 cm and over - rapid heat transfer and high efficiency |
|
|
|
SURFACE INDUCTION electric surface induction range with ceramic Ceran® hob
| Heating zones: | 2 / 4 (4 also with electric oven) |
| Corpus height: | 700 mm |
| Dimensions: | 500 x 850 mm (min.) |
| 800 x 850 mm (max.) | |
| Features: | |
| - seamless, easy to clean hob - separately controllable heating zones, each 5,0 kW - or 7 kW - island surface induction (10 kW) - electronic size recognition for pans with a base of 12 cm and over - rapid heat transfer and high efficiency |
|
|
|
Gas ranges
| Burners: | 2 / 4 / 6 (4 burners and above with electric or gas oven) |
| Corpus height: | 700 mm |
| Dimensions: | 400 x 850 mm (min.) |
| 1200 x 850 mm (max.) | |
| Features: | |
| - housing made completely from chromium-nickel steel - gas shut-off value in the front panel as standard - no irritating burning on of boiled over food |
|
 |
|
Optima 850 Deep Fat Fryers

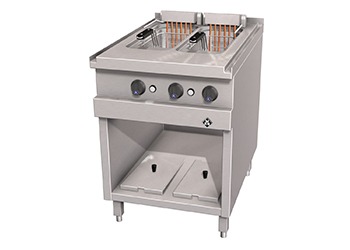

Electric deep fat fryers
| Models: | London I, London II, Paris (all available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 400 x 850 mm (min.) |
| 600 x 850 mm (max.) | |
| Capacity: | 12,5 liters (min.) |
| 30 liters (max.) | |
| Features: | |
| - thermostatic or electronic temperature regulation - safe oil drainage from below through draining ball valve - reliable over-heating protection - chromium nickel tubular heating elements - accessories: lid, oil clarifying tray, frying baskets |
|
|
|
Large electronic deep fat fryer Köln (Cologne)
| Lifting motor: | left or right (also available with discharge system and/or EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 1000 x 850 mm (min.) |
| 1800 x 850 mm (max.) | |
| Capacity: | 115 liters of fat |
| Features: | |
| - basket lifting mechanism as standard - high performance - robust and stable for daily use in large commercial kitchens - optional discharge system for perfect work flow |
|
|
|
Gas deep fat fryer Prag (Prague)
| Corpus height: | 700 mm |
| Dimensions: | 600 x 850 mm |
| Capacity: | 28 liters |
| Features: | |
| - indirect heating (lower oil consumption) - deep, cool oil zone to collect food particle debris - thermostatic control and safety temperature regulator |
|
|
|
Optima 850 Boiling Kettles

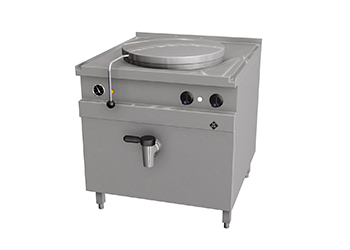

Electric quick boiling kettle (round)
| Model options: | 60 L / 100 L / 150 L (each also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1000 x 850 mm (max.) | |
| Inner kettle: | 500 Ø, 378 mm deep (min.) |
| 665 Ø, 500 mm deep (max.) | |
| Features: | |
| - inner kettle made completely from chromium-nickel steel - integrated VAPRO steam generator system - quick boiling and short heating up times - low energy consumption - thermostatic or electronic temperature control - automatic water level monitoring and top-up - double-skinned hinged lid with sprung swivel joint - as standard |
|
|
|
Electric quick boiling kettle
| Model options: | with agitator or with agitator and cooling module |
| Corpus height: | 700 mm |
| Dimensions: | 1000 x 850 mm (min.) |
| 1400 x 850 mm (max.) | |
| Nominal capacity: | 145 l |
| Inner kettle: | 665 Ø, 500 mm deep |
| Features: | |
| - inner kettle made completely from chromium-nickel steel - double-jacketed kettle with integrated, maintenance free - steam generator VAPRO - universal stirring arm - variable stirring speed between 10-45 rev/min in both - directions - EcoControl electronic control as standard - double-skinned hinged lid with viewing window as standard |
|
|
|
Electric tilting quick boiling kettle
| Model options: | 60 L / 100 L / 150 L / 200 L (each also available with manual or motorized tilting, motorized tilting also with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 1100 x 850 mm (min.) |
| 1300 x 850 mm (max.) | |
| Inner kettle: | 500 Ø, 378 mm deep (min.) |
| 665 Ø, 645 mm deep (max.) | |
| Features: | |
| - kettle has a tilting angle of more than 90° - controls and display instruments integrated into side frames - short heating up times - easy emptying into large containers |
|
|
|

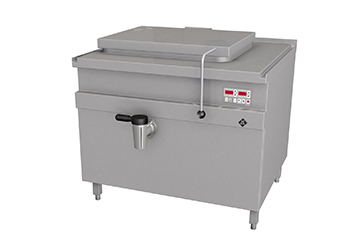

Electric quick boiling kettle and cooking kettle (rectangular)
| Model options: | 1 (125 liter) / 2 (195 liter) / 3 (285 liter) / 500 L (each also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 2000 x 850 mm (max.) | |
| Inner kettle: | 500 mm x 540 mm, 535 mm deep (min.) |
| für 2xGN 1/1 - 200 mm deep | |
| 1690 mm x 665 mm, 465 mm deep (max.) | |
| für 12xGN 1/1 - 200 mm deep | |
| Nominal capacity: | 125 l (min.) |
| 500 l (max.) | |
| Features: | |
| - Inner kettle made completely from chromium-nickel steel - integrated steam generator VAPRO - quick boiling and short heating up times - automatic water level monitoring and top-up |
|
|
|
Electric pressure cooking kettle OPTIMA EXPRESS
| Model options: | 1 (125 liter) / 2 (195 liter) / 3 (285 liter) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1400 x 850 mm (max.) | |
| Inner kettle: | 500 mm x 540 mm, 535 deep (min.) |
| für 2xGN 1/1 - 200 mm deep | |
| 1020 mm x 540 mm, 535 deep (max.) | |
| für 6xGN 1/1 - 200 mm deep | |
| Nominal capacity: | 125 l (min.) |
| 285 l (max.) | |
| Features: | |
| - OPTIMA EXPRESS sensor controlled pressure reduction - system - completely automatic regulation of pressure reduction - core temperature sensor as standard - inner kettle made completely from chromium-nickel steel - integrated steam generator VAPRO - steam injection - automatic water level monitoring and top-up - EcoControl electronic control as standard - double-skinned hinged lid as standard - rapid pressure release system OPEN EXPRESS |
|
|
|
Steam quick boiling kettle (round)
| Model options: | 60 L / 100 L / 150 L (each also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1000 x 850 mm (max.) | |
| Inner kettle: | 500 Ø, 378 mm deep (min.) |
| 665 Ø, 500 mm deep (max.) | |
| Features: | |
| - Inner kettle made completely from chromium-nickel steel - double-skinned hinged lid with sprung swivel joint - as standard - for steam generator supplied by customer |
|
|
|
Steam quick boiling kettle
| Model options: | with agitator or with agitator and cooling module |
| Corpus height: | 700 mm |
| Dimensions: | 1000 x 850 mm (min.) |
| 1400 x 850 mm (max.) | |
| Nominal capacity: | 145 l |
| Inner kettle: | 665 Ø, 500 mm deep |
| Features: | |
| - inner kettle made completely from chromium-nickel steel - universal stirring arm - variable stirring speed between 10-45 rev/min in both - directions - cooling system integrated into the double jacket - cooling down to 10°C - EcoControl electronic control as standard |
|
|
|
Steam tilting quick boiling kettle
| Model options: | 60 L / 100 L / 150 L / 200 L (each also available with manual or motorized tilting, motorized tilting also with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 1100 x 850 mm (min.) |
| 1300 x 850 mm (max.) | |
| Inner kettle: | 500 Ø, 378 mm deep (min.) |
| 665 Ø, 645 mm deep (max.) | |
| Features: | |
| - inner kettle is formed from a single piece - kettle has a tilting angle of more than 90° - easy emptying into large containers - controls and display instruments integrated into side frames |
|
|
|
Steam quick boiling kettle and cooking kettle (rectangular)
| Model options: | 1 (125 liter) / 2 (195 liter) / 3 (285 liter) / 500 L (each also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 2000 x 850 mm (max.) | |
| Inner kettle: | 500 mm x 540 mm, 535 mm deep (min.) |
| für 2xGN 1/1 - 200 mm deep | |
| 1690 mm x 665 mm, 465 mm deep (max.) | |
| für 12 GN 1/1 - 200 mm deep | |
| Nominal capacity: | 125 l (min.) |
| 500 l (max.) | |
| Features: | |
| - inner kettle made completely from chromium-nickel steel - double-skinned hinged lid with sprung swivel joint - as standard - for steam generator supplied by customer |
|
|
|
Steam pressure cooking kettle OPTIMA EXPRESS
| Model options: | 1 (125 liter) / 2 (195 liter) / 3 (285 liter) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1400 x 850 mm (max.) | |
| Inner kettle: | 500 mm x 540 mm, 535 deep (min.) |
| für 2xGN 1/1 - 200 mm deep | |
| 1020 mm x 540 mm, 535 deep (max.) | |
| für 6xGN 1/1 - 200 mm deep | |
| Nominal capacity: | 125 l (min.) |
| 285 l (max.) | |
| Features: | |
| - OPTIMA EXPRESS sensor controlled pressure reduction - system - completely automatic regulation of pressure reduction - core temperature sensos as standard - inner kettle made completely from chromium-nickel steel - EcoControl electronic control as standard - double-skinned hinged lid as standard - rapid pressure release system OPEN EXPRESS |
|
|
|
Gas quick boiling kettle (round)
| Tank capacity: | 60 L / 100 L / 150 L (each also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1000 x 850 mm (max.) | |
| Inner kettle: | 500 Ø, 378 mm deep (min.) |
| 665 Ø, 500 mm deep (max.) | |
| Features: | |
| - inner kettle made completely from chromium-nickel steel - innovative gas forced air burner technology - quick boiling and short heating up times - appliances are independent of the primary pressure of the - gas supply - 8 cooking levels as standard - low energy consumption - optimum mixture of combustion air with gas |
|
|
|
Gas quick boiling kettle and cooking kettle (rectangular)
| Model options: | 1 (125 liter) / 2 (195 liter) / 3 (285 liter) (eaach also available with EcoControl) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1400 x 850 mm (max.) | |
| Inner kettle: | 500 mm x 540 mm, 535 mm deep (min.) |
| für 2xGN 1/1 - 200 mm deep | |
| 1020 mm x 540 mm, 465 mm deep (max.) | |
| für 6xGN 1/1 - 200 mm deep | |
| Nominal capacity: | 125 l (min.) |
| 285 l (max.) | |
| Features: | |
| - inner kettle made completely from chromium-nickel steel - innovative gas forced air burner technology - quick boiling and short heating up times - optimum mixture of combustion air with gas - appliances are independent of the primary pressure of the - gas supply - 8 cooking levels as standard - automatic water level monitoring and top-up |
|
|
|
Optima 850 Tilting Bratt Pans
Electric tilting bratt pan with substructure
| Model options: | 2/1 GN, 3/1 GN (manual or motorized tilting, also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm (min.) |
| 1100 x 850 mm (max.) | |
| Pan inner dimensions: | 720 mm x 535 mm, 190 mm deep (min.) |
| 1020 mm x 535 mm, 190 mm deep (max.) | |
| Nominal capacity: | 59 l (min.) |
| 85 l (max.) | |
| Features: | |
| - heating system with SUPRA contact heating elements - even heat distribution - thermostatic or electronic temperature control for two - separate heating zones - optional double-skinned hinged lid |
|
|
|

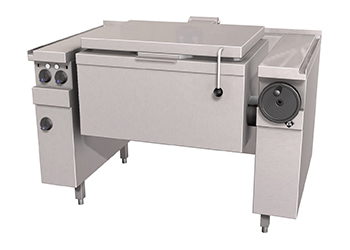

Electric tilting bratt pan with side frame
| Model options: | 2/1 GN, 3/1 GN (manual or motorized tilting) |
| Corpus height: | 700 mm |
| Dimensions: | 1300 x 850 mm (min.) |
| 1600 x 850 mm (max.) | |
| Pan inner dimensions: | 700 mm x 540 mm, 210 mm deep (min.) |
| 1020 mm x 540 mm, 210 mm deep (max.) | |
| Nomal capacity: | 80 l (min.) |
| 116 l (max.) | |
| Features: | |
| - tilting bratt pan made from chromium nickel steel - heating system with SUPRA contact heating elements - even heat distribution - thermostatic temperature control - double-skinned hinged lid as standard |
|
|
|
Gas tilting bratt pan with substructure
| Model: | 2/1 GN (manual or motorized tilting) |
| Corpus height: | 700 mm |
| Dimensions: | 800 x 850 mm |
| Pan inner dimensions: | 720 mm x 535 mm, 190 mm deep |
| Nominal capacity: | 59 l |
| Features: | |
| - even heat distribution over the whole pan bottom - pan pivot point at the front - eveb, no-splash pouring |
|
|
|
Gas tilting bratt pan with side frame
| Model options: | 2/1 GN, 3/1 GN (manual or motorized tilting) |
| Corpus height: | 700 mm |
| Dimensions: | 1300 x 850 mm (min.) |
| 1600 x 850 mm (max.) | |
| Pan inner dimensions: | 700 mm x 540 mm, 210 mm deep (min.) |
| 1020 mm x 540 mm, 210 mm deep (max.) | |
| Nominal capacity: | 80 l (min.) |
| 116 l (max.) | |
| Features: | |
| - thermostatic temperature control - 65 mm cleaning channel between pan and side frame - double-skinned hinged lid as standard - even, no-splash pouring |
|
|
|
Optima 850 Griddle Plates

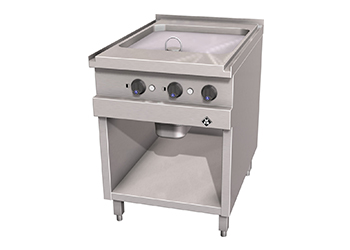

Electronic griddle plates and pans
| Model options: | ¾ Supra (plate only), 1 Supra, 2 Supra (griddle plate smooth, half-ripped or fully ripped) |
| Corpus height: | 700 mm |
| Dimensions: | 400 x 850 mm (min.) |
| 800 x 850 mm (max.) | |
| Features: | |
| - thermostatic temperature regulation for two heating zones - griddle pans with frying pans made completely from chromium-nickel steel - heating system with SUPRA contact heating elements - even heat distribution |
|
|
|
Gas griddle plates
| Model options: | I / II (4L or 6.25L fat collecting container; griddle plate smooth or half-ripped) |
| Corpus height: | 700 mm |
| Dimensions: | 600 x 850 mm (min.) |
| 1000 x 850 mm (max.) | |
| Features: | |
| - thermostatic temperature control - frying plate made from special heat resistant steel - lowered plate, seamlessly welded into the top plate - easy to clean corners |
|
|
|
Optima 850 Braising and Roasting
Electric bratt pan MAGNUM
| Model options: | 2/1 GN, 2/1 GN - 300, 3/1 GN, 3/1 GN - 300 (each with manual or motorized tilting) |
| Corpus height: | 700 mm |
| Dimensions: | 1000 x 850 mm (min.) |
| 1600 x 850 mm (max.) | |
| Pan inner dimensions: | 700 mm x 540 mm, 250 mm deep (min.) |
| 1020 mm x 540 mm, 300 mm deep (max.) | |
| Nominal capacity: | 92 l (min.) |
| 165 l (max.) | |
| Features: | |
| - multifunctional cooking unit for streaming, boiling, simmering, - braising and roasting - bratt pan made completely from chromium-nickel steel - Beheizung durch SUPRA-Kontaktheizkörper - heating system with SUPRA contact heating elements - EcoControl electronic control as standard - double-skinned hinged lid as standard |
|
|
|
Electric pressure bratt pans OPTIMA EXPRESS
| Model options: | 2/1 GN, 2/1 GN - 300, 3/1 GN, 3/1 GN - 300 (each also available with EcoControl electronic control) |
| Corpus height: | 700 mm |
| Dimensions: | 1100 x 850 mm (min.) |
| 1600 x 850 mm (max.) | |
| Pan inner dimensions: | 700 mm x 540 mm, 250 mm deep (min.) |
| 1020 mm x 540 mm, 300 mm deep (max.) | |
| Nominal capacity: | 92 l (min.) |
| 165 l (max.) | |
| Features: | |
| - bratt pan made completely from chromium-nickel steel - heating system with SUPRA contact heating elements - sensor supported pressure reduction system - fully automated regulation of the pressure reduction system - economic water use - core temperature sensor as standard - EcoControl electronic control as standard - double-skinned hinged lid as standard |
|
|
|
Current issues
Proven MKN quality
Successful ISO 9001 requalification audit
» moreNEW MKN COMBI STEAMER TRIUMPHS AT RENOWNED AWARDS
FlexiCombi Team receives innovation awards
» more
